Outside-in Pressure UF Membranes

Home Ultrafiltration membraneOutside-in Pressure UF Membranes

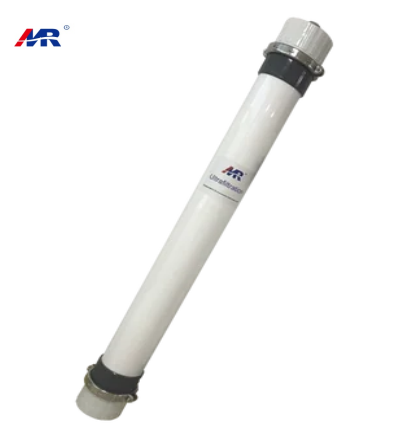

MRW-PVDF-UF-2880
Shanghai MORUI Technology Group Co., Ltd. is an international company has advanced membrane-making core technology, our membrane products have been sold to over 60 countries, recognized by many users in the water treatment field at home and abroad.
Download
Characteristic parameter Test standard
  • 1.High pressure resistance;
  • 2.Stable and long-lasting operation;
  • 3.Excellent cleaning and recoverability;
  • 4.A veriety of inflow channels are alternative;
  • 5.Good tolerance to chemical cleaning agent and temperature.
  • Design flux(L/m²/h) 40-120
  • Produced water pollution index(SDI15) ＜3
  • Permeate turbidity(NTU) ＜0.1
  • E. coli removal rate (log) ＞6
  • Virus removal rate(log) ＞6
  • Pore size(μm) 0.1-0.65 (MWCO:6000-150000)
  • Fiber inner/ outer diameter (mm) 0.7-1.3
  • Effective membrane area (m²) 77
  • Max. inflow pressure (MPa) 0.25
  • Max. transmembrane pressure (MPa) 0.15
  • Optimal permeate pressure (MPa) 0.01-0.1
  • Max. operating temperature (°C) 45
  • pH range 2-13
  • Backwash pressure (MPa) 0.25
  • Inlet size/outlet size(mm) DN50
